• 2009-04-21

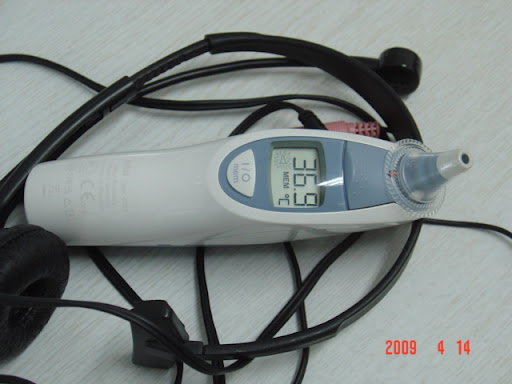

    Braun IRT4520 type 6022 thermoscanner

    版权声明:转载时请以超链接形式标明文章原始出处和作者信息及本声明
    http://insomniac-me.blogbus.com/logs/38259224.html

    博朗的这款温度计真的很好用,3秒内测定体温,带温度记忆、摄氏度华氏度转换,作为小孩子的父母很适用

    说明书可以轻易下载到,但是要用IRT4520这几个关键字搜索。具体指标如下:



    Product specifications

    Displayed temperature range: 93.2 °F – 108 °F (34 °C – 42.2 °C)

    Operating ambient

    temperature range: 50 °F – 104 °F (10 °C – 40 °C)

    Display resolution: 0.1 °F or °C

    Accuracy for patient temperature range

    Maximum Laboratory Error

    96.8 °F – 102.2 °F (36 °C – 39 °C): ± 0.4 °F (± 0.2 °C)

    outside this range: ± 0.5 °F (± 0.3 °C)

    Long term storage ranges

    Temperature: –4 °F to 122 °F (–20 °C to 50 °C)

    Humidity: 95 % non-condensing

    Battery life: 2 years / 1000 measurements

    以下介绍了,耳内测温的原理,原来耳鼓和大脑控制体温的中枢神经都是同一血液供给,所以耳温测量比腋下、直肠和体表测温都精确。

    这个耳温计也是用了红外线的原理进行测量。精度在0.1摄氏度。





    Why measure in the ear?

    The goal of thermometry is to measure core body temperature

    1

    which is the

    temperature of the vital organs. Ear temperatures accurately reflect core body

    temperature

    2

    , since the eardrum shares blood supply with the temperature

    control center in the brain

    3

    , the hypothalamus. Therefore, changes in body

    temperature are reflected sooner in the ear than at other sites.

    • Axillary temperatures measure skin temperature and therefore, may not be a

    reliable indicator of core body temperature.

    • Oral temperatures are influenced by drinking, eating and mouth breathing.

    • Rectal temperatures often lag behind changes in core body temperature and

    there is a risk of cross-contamination.
